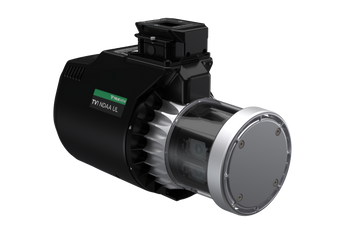

GeoCue TV1 NDAA

TV1 NDAA
NDAA-Compliant, High-Density Drone LiDAR with Integrated Camera
TV1 NDAA SPECIFICATIONS | 1
The TV1 NDAA expands GeoCue’s NDAA-compliant LiDAR portfolio with a cost-effective
aerial mapping solution for professional, government, and SLED applications. Designed
and manufactured at GeoCue’s Alabama facility, it combines the Ouster OS1 Max Rev 8 for
longer range, improved color performance, and higher resolution with an integrated 26 MP
camera to capture detailed point clouds and high-resolution imagery in a single flight.
Processing Modules
Navigation Solution
• Post-Processing:
• Single Base
• Performance (PPK):
• 0.03–0.05 RMSE
• Typical heading: 0.08º, Pitch & roll: 0.025
Camera
• Type: 26 MP, Global Shutter
• FOV: 80º FOV configuration
LiDAR Sensor
• Sensor: Ouster OS1 Max Rev 8
• 865 nm Class 1 eye-safe per IEC/EN 60825-1: 2014
• Range: Max 500 m, typical 200 m a 10%
• Accuracy: Min: ±0.25 cm, Max: ±1.5 cm typical 1 sigma
• Number of Lasers: 32 channels spread over 31º (-16, +15)
• Total Pulse Rate: up to 10,485,760 points per second
• Rotation Speeds: 5–20 Hz
• Beam Diameter Exiting Sensor: 19 mm
• Beam Divergence: 0.09° (FWHM)
• Returns: up to 2
• FOV:
• Vertical: 45°
• Horizontal: 360.0°
• Width: 106 mm
Applications
• Utility & Powerline Mapping
• Corridor & Infrastructure
Mapping
• Urban Planning
• Precision Forestry & Canopy
Penetration
Platform
• Size:
• Length: 221 mm
• Width: 105 mm
• Height: 148 mm
• Weight:
• 1.8 kg for payload
• Power Consumption:
15–25 W
• Operating Voltage:
9–58 V DC
• Operating Temperature:
-40°C–+85°C
• Comes with LP360 Drone
(subscription or perpetual options available)
• Optional add ons available:
• Strip Align for Drone
• Photo
• 3D Accuracy
• Automatic AI Ground Classification
• Cloud Collaborate
• Photogrammetry with Agisoft
• Photo
• Business Intelligence
• Unlimited
• Cloud Photo 3000
Payload Specifications Performance Data
TV1 NDAA LiDAR Field of View (FOV)
Features
221 mm
105 mm
148 mm
45° FOV in track allow to cover vertical surfaces in the direction of the flight
Calibrated Mapping Camera
Providing true colorization and pictures for
photogrammetry over 80°
CAMERA FOV LIDAR IN-TRACK FOV
TV1 NDAA SPECIFICATIONS | 2
Quick Connect to Drone
The TV1 NDAA allows easy integration with
various drone platforms via SmartDovetail adapters.
(TV1 NDAA with SmartDovetail adapter shown)
Range Precision (Min: ±0.25 cm, Max: ±1.5 cm)
(Typical on Lambertian and Retroreflective targets beyond 1 m, 1024 @
10 Hz mode, 1 standard deviation)
Precision is calculated based on the standard deviation of 100 measurements on a
static target at a given range
(Typical on Lambertian and Retroreflective targetsbeyond 1 m,1024 @
10 Hz mode) Note: Accuracy is calculated based on the errorbetween the mean of
100 measurements on astatic target at a given range and the true range
Range Accuracy ±1.25 cm for lambertian targets, ±2.5 cm for
retroreflective targets
80° 45°
