GeoCue TV1 NDAA UL

TV1 NDAA UL
High-Density, Long-Range, Lightweight, NDAA-Compliant Drone LiDAR
TV1 NDAA UL SPECIFICATIONS | 1
Processing Modules
• Comes with LP360 Drone
(subscription or perpetual options available)
• Optional add ons available:
• Strip Align for Drone
• Photo
• 3D Accuracy
• Automatic AI Ground Classification
• Cloud Collaborate
• Photogrammetry with Agisoft
• Photo
• Business Intelligence
• Unlimited
• Cloud Photo 3000
Navigation Solution
• Post-Processing:
• Single Base
• Performance (PPK):
• 0.03–0.05 RMSE
• Typical heading: 0.08º, Pitch & roll: 0.025
Native Color Output
• Dynamic Range: 116 dB
• Lux @ SNR 10 dB: 3 lux
• Max measurable illuminance: 2,000,000 lux
• Sensitivity metamerism index (ISO 17321): 80
• Bit depth: 48-bit (total) or 16-bit per channel
LiDAR Sensor
• Sensor: Ouster OS1 Max Rev 8
• 865 nm Class 1 eye-safe per IEC/EN 60825-1: 2014
• Range: Max 500 m, typical 200 m a 10%
• Accuracy: Min: ±0.25 cm, Max: ±1.5 cm typical 1 sigma
• Number of Channels: 256
• Total Pulse Rate: up to 10,485,760 points per second
• Rotation Speeds: 5–20 Hz
• Beam Diameter Exiting Sensor: 19 mm
• Beam Divergence: 0.09° (FWHM)
• Returns: up to 2
• FOV:
• Vertical: 45°
• Horizontal: 360.0°
• Width: 106 mm
Applications
Platform
• Size:
• Length: 221 mm
• Width: 105 mm
• Height: 148 mm
• Weight:
• 1.4 kg for payload
• Power Consumption:
15–25 W
• Operating Voltage:
9–58 V DC
• Operating Temperature:
-40°C–+85°C
• Utility & Powerline Mapping
• Corridor & Infrastructure
Mapping
• Urban Planning
• Precision Forestry & Canopy
Penetration

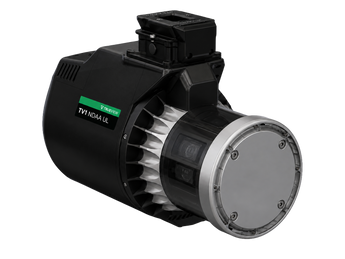

The TV1 NDAA UL delivers high-density LiDAR in a lightweight, cost-effective system
designed for NDAA-compliant aerial mapping. Built around the Ouster OS1 Max Rev 8, it
provides longer range, improved resolution, and enhanced color performance, while native
direct colorization assigns RGB values to every 3D point during capture, eliminating the
need for an external camera.
Payload Specifications Performance Data
TV1 NDAA UL LiDAR Field of View (FOV)
Features
Native LiDAR Colorization
The TV1 NDAA UL uses hardware-level native colorization
to assign color directly to each LiDAR point, eliminating the
need for an external RGB camera.
TV1 NDAA UL SPECIFICATIONS | 2
Quick Connect to Drone
The TV1 NDAA UL allows easy integration with
various drone platforms via SmartDovetail adapters.
Range Precision (Min: ±0.25 cm, Max: ±1.5 cm)
(Typical on Lambertian and Retroreflective targets beyond 1 m, 1024 @
10 Hz mode, 1 standard deviation)
Precision is calculated based on the standard deviation of 100 measurements on a
static target at a given range
(Typical on Lambertian and Retroreflective targetsbeyond 1 m,1024 @
10 Hz mode) Note: Accuracy is calculated based on the errorbetween the mean of
100 measurements on astatic target at a given range and the true range
Range Accuracy ±1.25 cm for lambertian targets, ±2.5 cm for
retroreflective targets
221 mm
105 mm
148 mm
(TV1 NDAA UL with SmartDovetail adapter shown)
LIDAR FOV LIDAR IN-TRACK FOV
360° 45°
